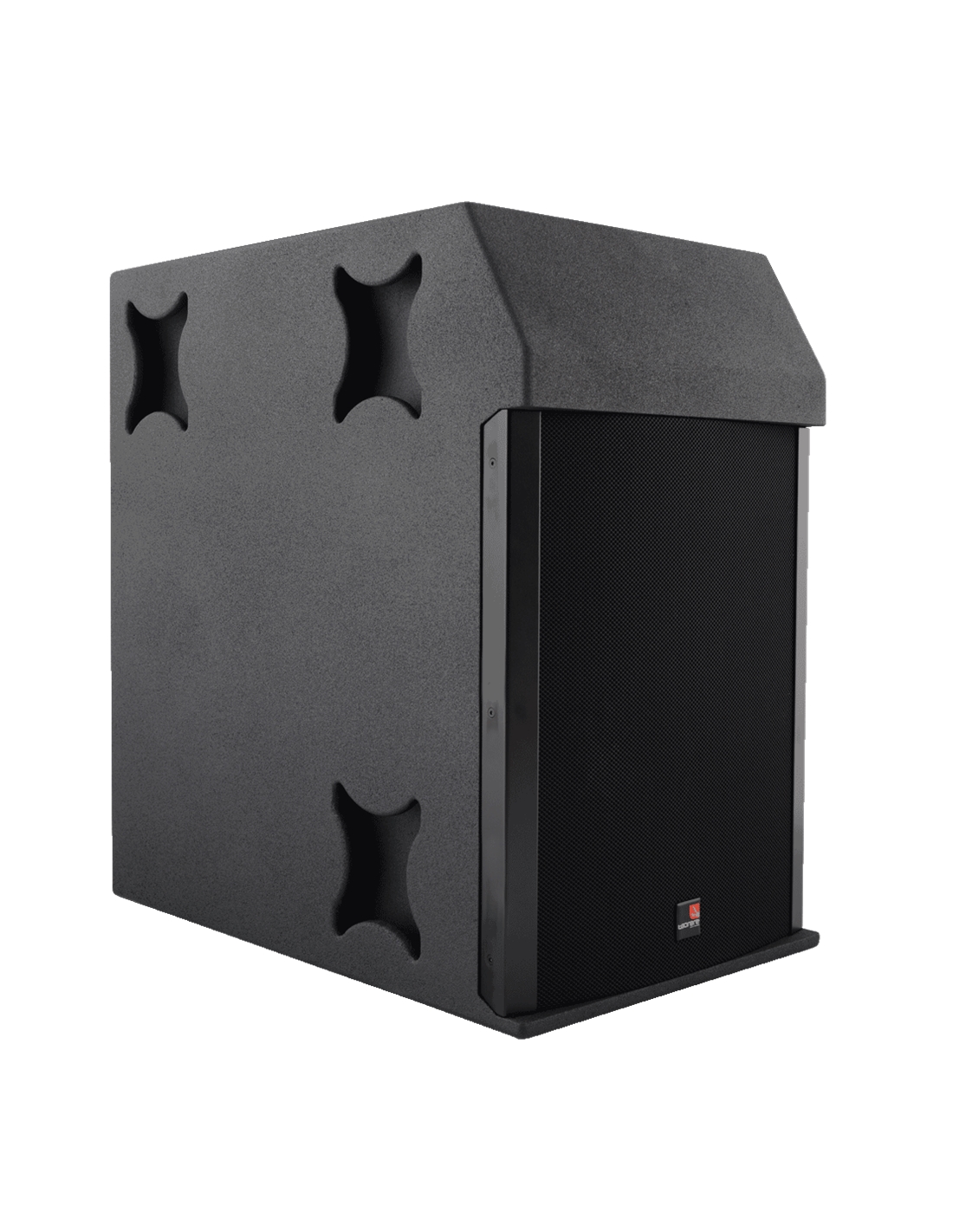

Tecnare SW115
The SW-115 is a very powerful band pass rear horn-loaded subwoofer designed for use in nightclub applications, although it is also ideally suited for concert touring and festivals. High-velocity band pass horn-loading technique, gives a precise cone control, resulting in a deep and fast bass response at high power levels, with a very high sensitivity. The response given with this subwoofer is very deep, starting at 38 Hz, but at the same time it delivers tremendous punch due to its fast transient response.
The enclosure has been made with the latest techniques ensuring a perfect and rigid construction. Weatherized finish is provided, as the cabinet is coated with rugged Durawound texture finish and protected with specially treated grills.
The system’s choice can be passive (SW-115), and Self-Powered without networking (SW-115A) or with networking remote PC control (SW-115 PCC-3).
Frequency Response: 38 Hz – 150 Hz ±4dB, measured on axys
Components: 1×15” LF driver
Nominal Dispersion: 120º x 120º
Impedance: 8 Ohm
Axial Sensitivity: 99 dB (1w/1m)
Calculated SPL: 129 dB continuous /135 dB peak
Power Handling: 1000 W AES / 2000 W continuos.
Dimmensions (HxWxD) (millimeters/inches): 735x445x690mm / 28.93" x 15.52" x 27.16"
Net Weight (kg/Pounds): 43,2 Kg / 95.24 lbs
Construction: 18mm birch plywood. Finished in black semi-matt textured Durawound weatherized coating. Six recessed carrying handle.
Grille: Powder coated perforated steel with acoustically transparent reticulated foam
