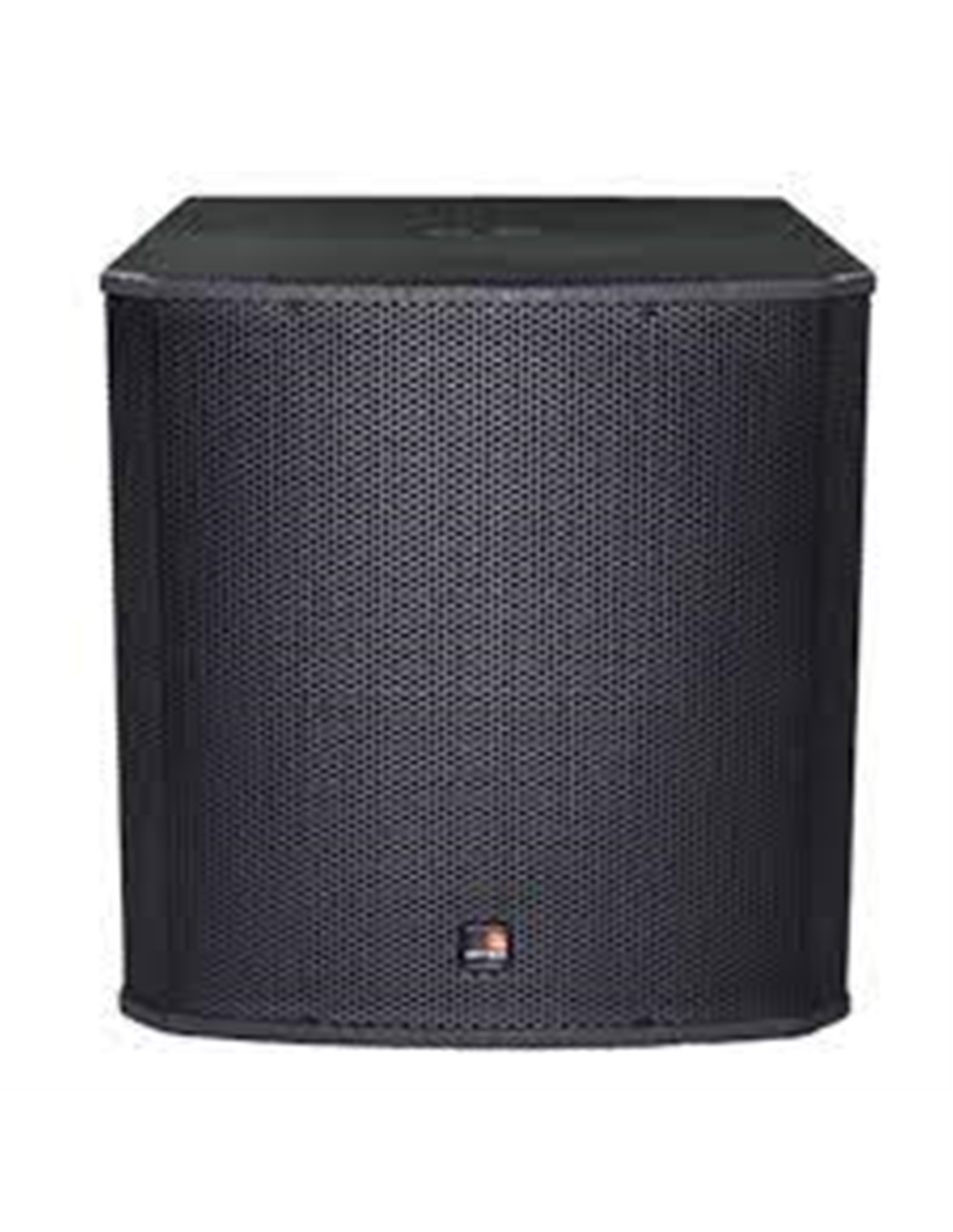

TEC ESW-10

COLUNA SUBGRAVE E SW-10

The ESW110 is a ultra-compact subwoofer system comprised of one 10-inch low frequency driver in a vented, front-loaded configuration for extended bandwidth. It has been designed for small sound reinforcements, where box size matters. The rectangular cabinet has been made with the latest techniques ensuring a perfect and rigid construction and is fitted with M10 threaded suspension points for ultimate flexibility. As a part of Tecnare’s E Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, ESW110 provides a natural low-frequency sound quality.
TEC ESW-10


Frequency Response: 45 Hz – 500 Hz ±3dB, measured on axys
Components: 1×10” LF driver
Nominal Dispersion: 360º
Impedance: 8 Ohm.
Axial Sensitivity: 94 dB (1w/1m)
Calculated SPL: 115 dB continuous /121 dB peak
Power Handling: 250 W AES / 500 W continuos
Dimmensions (HxWxD) (millimeters/inches): 310x398x350 mm / 12.20" x 15.70" x 13.78"

Net Weight (kg/Pounds): 9,6 Kg / 21.16 lbs

Construction: 16mm birch plywood. Finished in black paint.

Grille: Powder coated perforated steel with acoustically transparent reticulated foam
